Odin: Samsung’s Powerful Flashing Tool for Advanced Users

1. Firmware Flashing:
   • Odin enables the installation of official Samsung firmware updates, which can be useful for restoring a device to factory settings, unbricking a device, or upgrading to a newer software version.
2. Custom ROMs:
   • Users can flash custom ROMs, allowing them to modify the Android operating system beyond the limitations set by the manufacturer.
3. Recovery and Bootloader:
   • Odin can flash custom recovery images (like TWRP) and bootloader updates, which are essential for advanced modifications and system tweaks.
4. Partition Flashing:
   • Odin supports flashing individual partitions such as the system, boot, recovery, and others, providing granular control over the device’s software.
5. Kernel Flashing:
   • Users can flash custom kernels to optimize performance, battery life, or add new features.

How Odin Works

Using Odin involves several steps that must be followed carefully to avoid bricking the device. Here’s a comprehensive guide on how to use Odin for flashing firmware or other system files:

1. Download and Install Odin:
   • Obtain the latest version of Odin from a trusted source. There is no official Samsung website for Odin, so it’s important to download from reputable Android forums or communities.
2. Download the Firmware or Files:
   • Download the appropriate firmware, custom ROM, recovery image, or other files you wish to flash. Ensure these files are compatible with your specific Samsung device model.
3. Prepare Your Device:
   • Enable Developer Options on your device (Settings > About phone > Tap on Build number seven times). Then enable USB Debugging (Settings > Developer options > USB debugging).
   • Boot your device into Download Mode. This is usually done by pressing a combination of buttons (Volume Down + Home/Bixby + Power) until the Download Mode screen appears.
4. Connect Your Device:
   • Connect your Samsung device to your computer using a high-quality USB cable. Odin should recognize the device, indicated by a «Added!» message in the Odin interface.
5. Load Files into Odin:

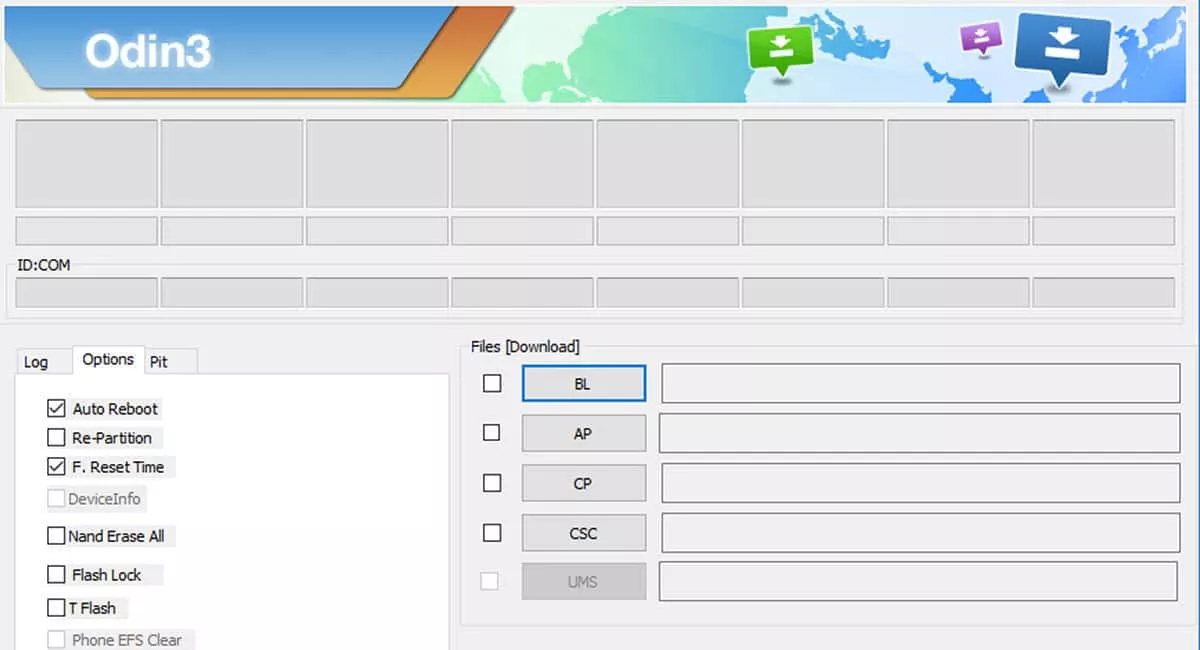

   • Load the necessary files into Odin by clicking on the corresponding buttons (BL for bootloader, AP for the main firmware file, CP for modem files, and CSC for consumer software customization). Ensure you load files in their correct sections to avoid errors.
6. Start Flashing:
   • Once everything is set up correctly, click the «Start» button. Odin will begin the flashing process, and you should see a progress bar indicating the status. Do not disconnect the device during this process.
7. Reboot and Verify:
   • After the process completes, Odin will display a «PASS!» message, and your device will reboot. Verify that the firmware or files have been successfully installed.

Benefits of Using Odin

1. Official Firmware Installation:
   • Odin allows users to install official Samsung firmware, making it easier to restore devices to factory settings or unbrick devices that have software issues.
2. Customization:
   • Advanced users can flash custom ROMs, kernels, and recoveries, allowing for extensive customization of the device’s software and performance.
3. Recovery from Soft Bricks:
   • Odin is a valuable tool for recovering devices from soft bricks caused by failed software updates or incorrect flashing procedures.
4. Control Over Updates:
   • Users can manually install firmware updates, bypassing the wait for over-the-air (OTA) updates and ensuring they always have the latest software.

Risks and Challenges

1. Bricking the Device:
   • Incorrect use of Odin can lead to bricking the device, rendering it unusable. It’s crucial to follow instructions carefully and ensure compatibility of the firmware and files.
2. Warranty Void:
   • Flashing custom ROMs or unofficial firmware can void the device’s warranty. Users should be aware of the implications before proceeding.
3. Data Loss:
   • Flashing firmware typically wipes the device’s data. It’s important to back up important information before using Odin.
4. Security Risks:
   • Downloading firmware and other files from untrusted sources can introduce malware or compromised software.

Practical Examples of Use

1. Upgrading Firmware:

• Use Odin to manually upgrade your Samsung device to the latest firmware, especially if the OTA update is delayed or unavailable.

2. Installing Custom ROMs:

• Flash custom ROMs like LineageOS to enjoy a different Android experience with additional features and customization options.

3. Recovering Bricked Devices:

• If your device is stuck in a boot loop or is not responding, use Odin to reflash the stock firmware and restore functionality.

4. Flashing Custom Recoveries:

• Install custom recoveries such as TWRP to enable advanced functionalities like full system backups, custom ROM installations, and more.

Tips and Best Practices

1. Back Up Data:
   • Always back up your data before using Odin, as the flashing process typically wipes the device.
2. Use the Correct Firmware:
   • Ensure you download and use the correct firmware or files for your specific device model to avoid compatibility issues.
3. Stable Connection:
   • Use a reliable USB cable and ensure a stable connection to prevent interruptions during the flashing process.
4. Read Instructions:
   • Carefully read and follow instructions from trusted sources or community forums to minimize risks.
5. Check Odin Version:
   • Use the latest version of Odin compatible with your device to benefit from improved features and bug fixes.

Conclusion

Odin is a powerful tool for advanced Samsung device users, offering extensive capabilities for firmware flashing, customization, and recovery. While it comes with certain risks, such as the potential to brick a device or void warranties, the benefits of enhanced control and the ability to recover from software issues make it invaluable for tech enthusiasts and developers. By following best practices and using the tool responsibly, users can unlock the full potential of their Samsung devices, ensuring they always have the latest software and the ability to customize their Android experience to their liking.
